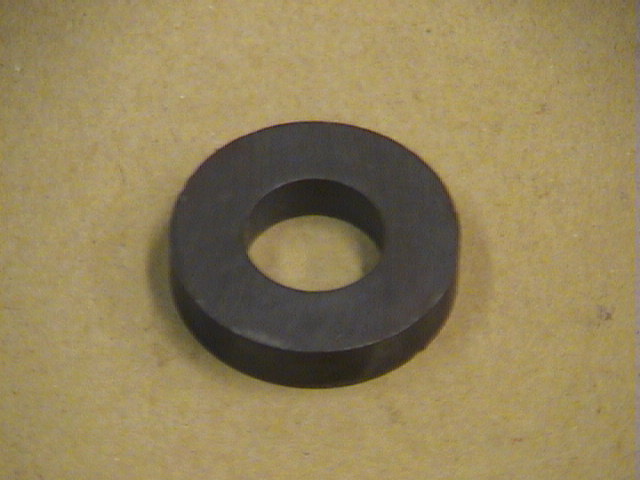

Ferrit magnet ring
|
LIKA
magneter Tlf.: (+45) 39690969 Fax.: (+45) 39691869
E-mail:
lika@lika.dk |
|
Ferritmagneter – også kaldet keramiske magneter –
fremstilles ved at blande pulveriseret jernoxid med
barium eller stronium. De presses så til den form man
måtte ønske sig. Magneterne har mange anvendelser, fra
ganske almindelige tavlemagneter til værktøj,
dørholdere, motorer, magnet transportører eller
højtalere.
Magneterne er meget modstandsdygtige
overfor korrosion.
Bemærk at holdekraften er målt uden luftspalte, dvs.
ved fuld kontakt mellem magnet og materiale. Hvis
luftspalten øges, formindskes holdekraften.
|
Varenummer med
Fed type afsendes samme dag. Varenummer med normal
type afsendes inden for 3-7 arbejdsdage.
|
Varenummer |
D
mm |
d
mm |
T
mm |
Felt
fig. |
Vægt
g |
Kraft
Newton |
Type |
|
1111200010 |
8,0 |
2,0 |
4,3 |
1 |
0 |
x |
Y30 |
|
1111200020 |
10,0 |
4,5 |
4,0 |
1 |
0 |
x |
Y30 |
|
1111200030 |
12,0 |
3,2 |
12,0 |
1 |
0 |
x |
Y30 |
|
1111200040 |
13,0 |
6,0 |
14,5 |
1 |
0 |
x |
Y30 |
|
1111200050 |
14,0 |
2,5 |
5,0 |
1 |
0 |
x |
Y30 |
|
1111200060 |
14,0 |
5,2 |
9,0* |
1 |
0 |
x |
Y30 |
|
1111200085 |
14,0 |
8,0 |
3,0 |
1 |
1,52 |
x |
Y10 |
|
1111200098 |
15,2 |
3,2 |
4,0 |
1 |
3,3 |
x |
Y30 |
|
1111200100 |
15,2 |
3,2 |
6,0* |
1 |
5,1 |
x |
Y30 |
|
1111200110 |
15,2 |
4,0 |
10,0 |
1 |
0 |
x |
Y30 |
|
1111200120 |
16,0 |
6,3 |
10,0 |
1 |
0 |
x |
Y30 |
|
1111200130 |
16,0 |
6,4
|
3,5* |
1 |
0 |
x |
Y30 |
|
1111200200 |
18,0 |
5,0 |
5,0 |
1 |
5,87 |
x |
Y30 |
|
1111200210 |
19,2 |
6,2 |
6,5 |
1 |
0 |
x |
Y30 |
|
1111200300 |
20,0 |
4,3 |
6,5* |
1 |
8,5 |
x |
Y30 |
|
1111200305 |
20,0 |
4,3 |
6,5 |
1 |
9,8 |
x |
Y30 |
|
1111200400 |
20,0 |
4,3 |
10,0* |
1 |
13,1 |
x |
Y30 |
|
1111200405 |
20,0 |
4,3 |
10,0 |
1 |
14,9 |
x |
Y30 |
|
1111200410 |
20,0 |
13,0 |
4,8 |
1 |
4,4 |
x |
Y30 |
|
1111200420 |
24,0 |
10,2 |
4,0 |
1 |
0 |
x |
Y30 |
|
1111200440 |
25,0 |
18,0 |
15,0 |
1 |
0 |
x |
Y30 |
|
1111200430 |
25,5 |
12,5 |
3,3 |
1 |
6,6 |
x |
Y30 |
|
1111200442 |
25,8 |
15,1 |
6,0 |
1 |
9,9 |
x |
Y30 |
|
1111200444 |
28,0 |
18,0 |
8,0 |
1 |
14,25 |
x |
Y30 |
|
1111200450 |
28,5 |
16,2 |
10,0* |
1 |
0 |
x |
Y10 |
|
1111200470 |
30,0 |
4,5 |
9,0 |
1 |
0 |
x |
Y30 |
|
1111200458 |
30,0 |
12,7 |
6,3 |
1 |
17,0 |
x |
Y30 |
|
1111200460 |
30,0 |
16,0 |
6,0 |
1 |
0 |
x |
Y30 |
|
1111200500 |
31,0 |
5,3 |
15,0* |
1 |
55,3 |
x |
Y30 |
|
1111200465 |
32,0 |
15,0 |
5,4* |
1 |
16,0 |
x |
Y30 |
|
1111200510 |
32,0 |
16,0 |
5,0 |
1 |
0 |
x |
Y30 |
|
1111200515 |
32,0 |
18,0 |
4,5* |
1 |
12,0 |
x |
Y30 |
|
1111200520 |
36,0 |
18,0 |
5,0 |
1 |
18,8 |
x |
Y30 |
|
1111200600 |
36,0 |
18,0 |
8,0 |
1 |
31,5 |
x |
Y30 |
|
1111200610 |
40,0 |
22,0 |
9,0 |
1 |
40,0 |
x |
Y30 |
|
1111200690 |
45,0 |
22,0 |
8,0 |
1 |
48,6 |
x |
Y30 |
|
1111200700 |
45,0 |
22,0 |
9,0 |
1 |
47,0 |
x |
Y30 |
|
1111200800 |
51,0 |
24,0 |
9,0 |
1 |
72,4 |
x |
Y30 |
|
1111200810 |
53,0 |
24,0 |
11,0 |
1 |
0 |
x |
Y30 |
|
1111200820 |
55,0 |
24,0
|
8,0 |
1 |
75,5 |
x |
Y30 |
|
1111200830 |
55,0 |
24,0 |
12,0 |
1 |
114,0 |
x |
Y30 |
|
1111200840 |
55,0 |
42,0 |
8,0 |
1 |
0 |
x |
Y30 |
|
1111200850 |
60,0 |
24,0 |
8,0 |
1 |
0 |
x |
Y30 |
|
1111200900 |
60,0 |
32,0 |
10,0 |
1 |
99,6 |
x |
Y30 |
|
1111200910 |
65,0 |
32,0 |
10,0 |
1 |
126,0 |
x |
Y30 |
|
1111200980 |
67,0 |
32,0 |
13,0 |
1 |
175,0 |
x |
Y30 |
|
1111200920 |
70,0 |
50,0 |
10,0 |
1 |
89,0 |
x |
Y30 |
|
1111200930 |
72,0 |
32,0 |
10,0 |
1 |
165,0 |
x |
Y30 |
|
1111201000 |
72,0 |
32,0 |
15,0 |
1 |
244,5 |
x |
Y30 |
|
1111201010 |
84,0 |
32,0 |
15,0 |
1 |
0 |
x |
Y30 |
|
1111201020 |
90,0 |
36,0 |
17,0 |
1 |
435,0 |
x |
Y30 |
|
1111201021 |
90,0 |
40,0 |
13,0 |
1 |
327,0 |
x |
Y30 |
|
1111201027 |
102,0 |
51,0 |
14,0 |
1 |
414,0 |
x |
Y30 |
|
1111201030 |
102,0 |
57,0 |
17,0 |
1 |
0 |
x |
Y30 |
|
1111201040 |
110,0 |
51,0 |
17,0 |
1 |
0 |
x |
Y30 |
|
1111201050 |
120,0 |
60,0 |
20,0 |
1 |
833,5 |
x |
Y30 |
|
1111201055 |
127,0 |
60,0 |
17,0 |
1 |
837,0 |
x |
Y30 |
|
1111201060 |
134,0 |
56,0 |
20,0 |
1 |
0 |
x |
Y30 |
|
1111201070 |
155,0 |
57,0 |
17,5 |
1 |
1400,0 |
x |
Y30 |
|
1111201080 |
184,0 |
73,0 |
18,5 |
1 |
2080,0 |
x |
Y30 |
|
1111201090 |
192,0 |
83,0
|
21,0 |
1 |
0 |
x |
Y30 |
|
1111201100 |
224,0 |
122,0 |
25,4 |
1 |
3487,0 |
x |
Y30 |
1 kg = 10 Newton
|
